Sold Individually

Specs & Features

• Size: 2" Lap, 2" Shoulder, 2" Sub
• NOT D.O.T. / FMVSS Certified for on Highway Use
• Premium 2" Polyester Webbing
• Pull Up Style Lap Belt
• 5 Point Design - Single 2" Crotch Strap
• 2" Hardware Ends Installed
• Double Adjustable for Ease of Installation
• Wrap Around or Bolt-in Mounting
• Drop-Forged Steel Hardware
• Shoulders Adjust from 26" to 62"
• Lap Belt Adjusts 30" to 65"
• Twin Individual 2" HANS / HNR Shoulder Belts
• Compact Small Buckle Latch Mechanism
• Black Oxidized Hardware

• Available in Black

NOTE:

• RaceQuip harness sets and seat belts are NOT D.O.T. / FMVSS 209/302 certified for on highway use. They are only to be used in racing vehicles off of public streets and highways. All racing harness sets are designed to be mounted in a race vehicle to a rollcage or harness bar - if you do not have either, you should not try to install any RaceQuip harness set or seat belts.
• No Mounting bolts are included with any RaceQuip seat belt sets except some FIA sets where eyebolts come standard.

Description

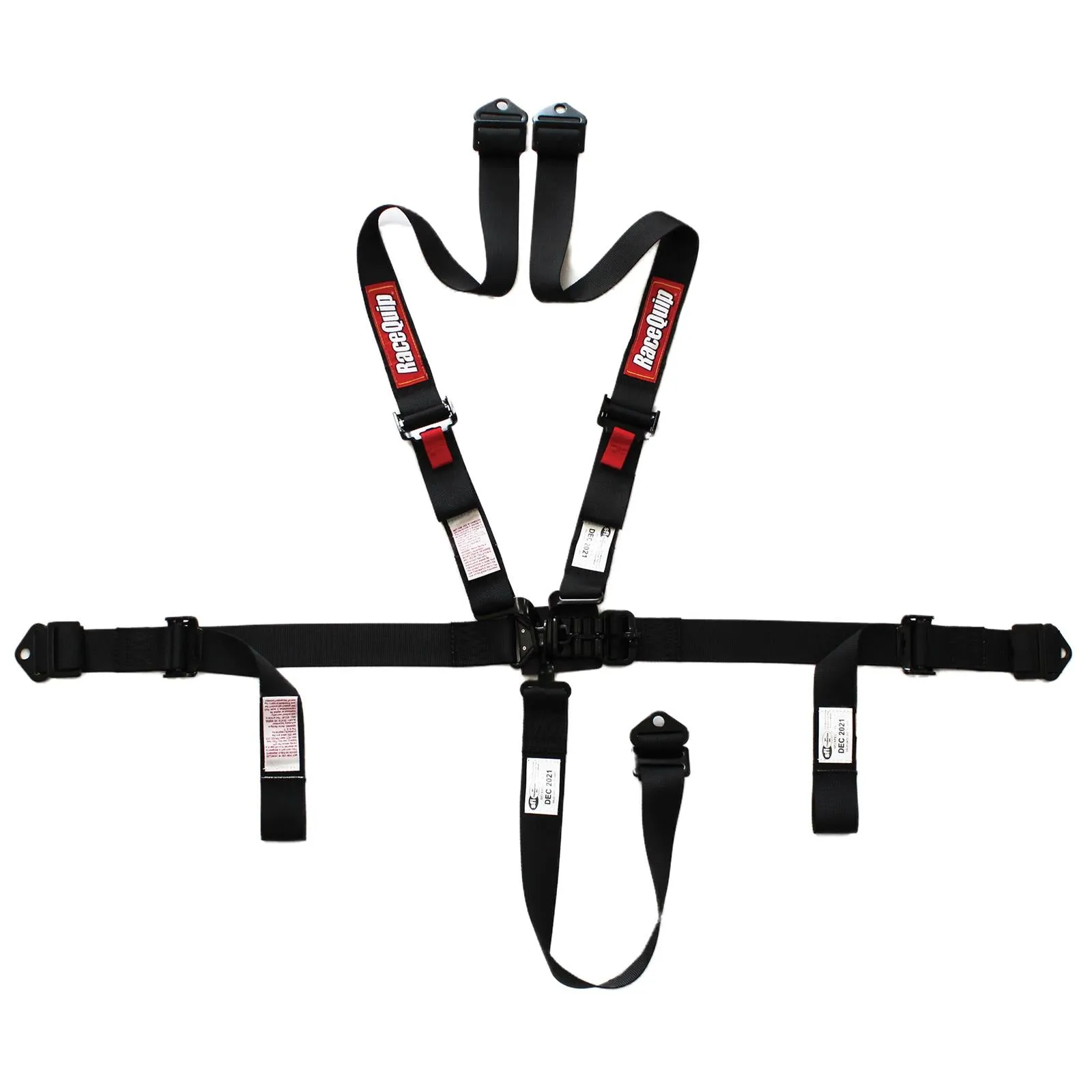

RaceQuip’s all 2" small buckle Latch & Link Pro 5-point auto racing harness set has twin individual HANS / HNR style shoulder belts and is manufactured using premium polyester webbing and drop forged steel black hardware to exceed the SFI 16.1 rating. Shoulders are 2" width to accommodate a HANS or other Head & Neck Restraint Device and adjust from 26" to 62" in length. The 2" wide lap belt adjusts from 30" to 65".

Many racers now prefer a 2" lap belt because it tucks under the iliac crest (hip bone) so that you can get the lap belt tighter. This harness set is a "pull up lap" design, which means that the lap belt straps must be pulled up and toward the center latch & link buckle mechanism to tighten the belts.

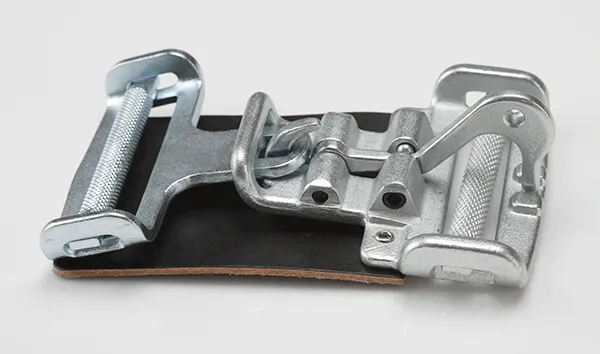

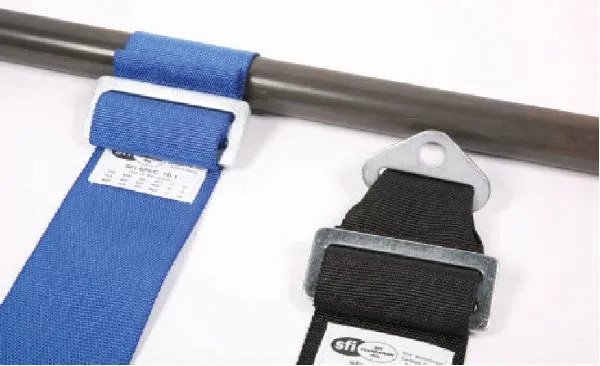

This 2" Pro Harness set features a small compact design buckle that is lightweight and stays out of the way. Both shoulder belts and the sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the lever is then brought down into and over the link, securely holding all of the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends (bolts not included). The buckle and all the hardware is black oxide coated for good looks and durability. Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner.

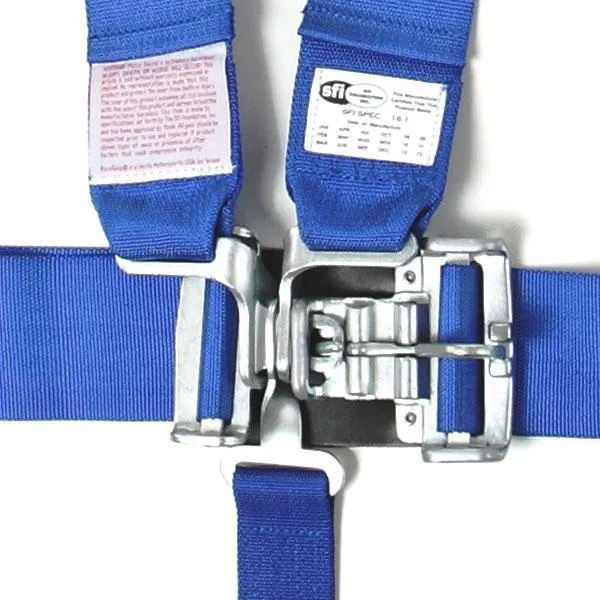

All of our harness sets feature a latch & link system to retain the belts. The latch & link system is distinguished by a pivoting "hammer," called a Duckbill, which locks all of the belts into place by snapping down into a detent. Both shoulder belts and the sub belt are hooked over the link; the link is inserted into the latch; the Duckbill is then brought down into and over the link, securely holding all of the pieces in place.

RaceQuip Latch & Link Harness Systems come as a "pull down" design. This means that the lap belts must be pulled down and away from the center latch mechanism to tighten.  Since our belts are "double adjustable", lengths are easily adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place. Snap-in ends and eyebolts are sold separately if you want to install your belts in that manner. For belt mounting tips and instructions click on the belt mounting instructions at the bottom of the "Harness Systems" page.
